Thermal Cycler

Product Code: DNT-TC64

Thermal cyclers (PCR machines) are commonly used for performing Polymerase Chain Reaction (PCR) reactions. This method was invented by Kary Mullis in 1984, providing researchers, scientists, and physicians with the ability to rapidly and easily amplify billions of copies of a nucleic acid sequence with much greater speed and convenience than traditional manual methods. Thermal cycles come in simple and gradient types. In the simple mode, the machine can simultaneously set a specific temperature for the samples, while in the gradient mode, multiple temperatures can be applied simultaneously. Denagene Tajhiz designs and manufactures both the standard PCR model and the gradient PCR model.

Product models

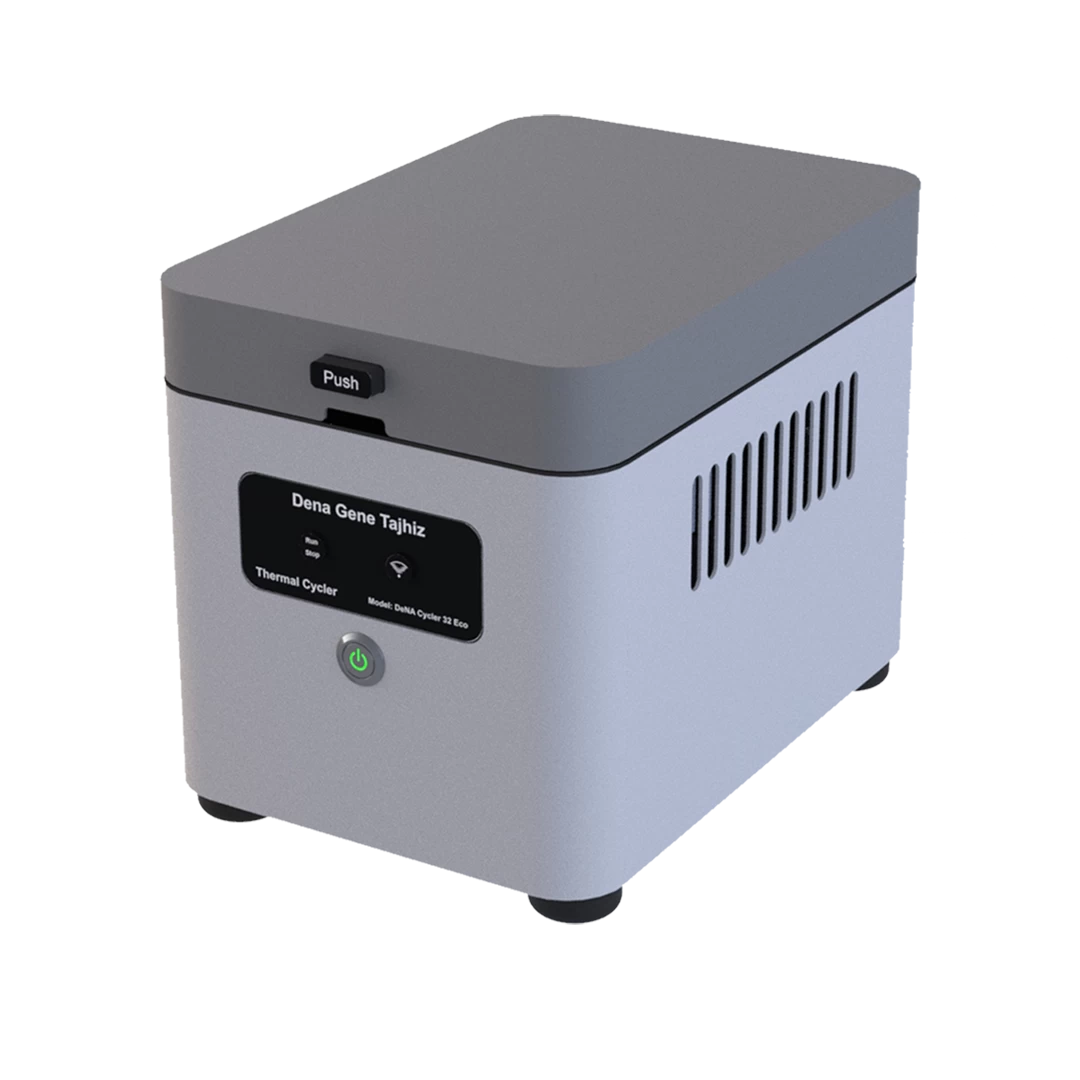

DeNA Cycler 32

Products Price

To receive a proforma invoice, please contact us through the channels below.

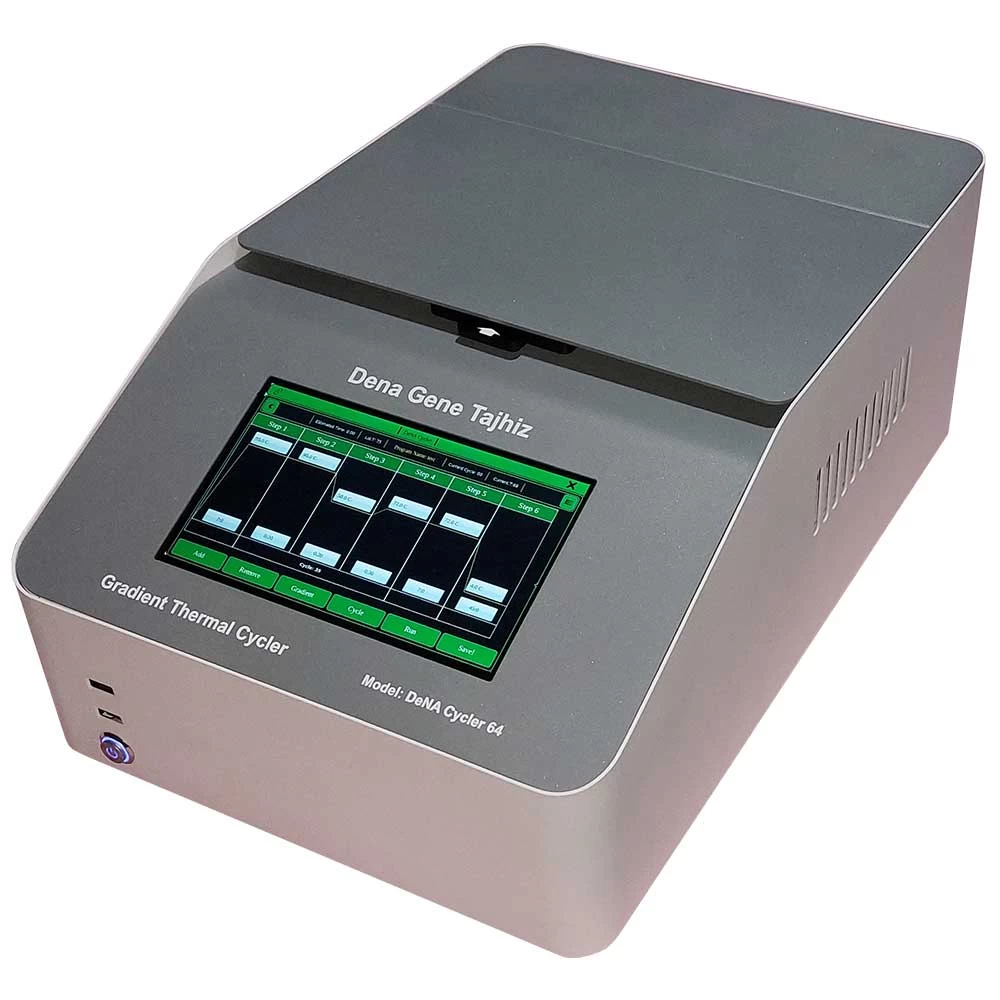

Gradient Thermal Cycler 64

A thermal cycler, also known as a PCR machine, efficiently performs the amplification of nucleic acids using Peltier technology. By amplifying DNA, various downstream processes such as diagnostics, cloning, genotyping, and sequencing can be easily performed. The thermal cycler itself comes in both standard and gradient types. In the gradient mode, multiple temperatures can be applied simultaneously. Integrating the gradient feature into the thermal cycler system enables processes like primer optimization to be efficiently and rapidly conducted. Denagene Tajhiz has designed and produced both standard PCR and gradient PCR modes, offering them in the market. The thermal cycler's excellent ramping speed allows users to define ramp rates ranging from 0.1 to 4 degrees Celsius per second for a PCR reaction. Denagene Tajhiz’s gradient PCR devices provide a variety of models, professional device construction, suitable ramp rates, and incredibly user-friendly software, enhancing the experience of molecular work for users. We hope that by providing high-quality Iranian products to researchers and experts, we can contribute modestly to scientific advancement in our country.

Applications

Immunology
Forensic Science
Cancer Diagnosis
Population Biology
Paleontology
Zoology
Plant Science Research
Clinical Diagnostics of Viruses, Tumors, and Genetic Diseases.

Features

Uniform Temperature Throughout the Block
Various Programmable Settings and Infinite Mode
Dynamic Programming System
Excellent Temperature Control System
Suitable Ramping Rate
Eco Mode Capability
Ability to Define Temperature Zones with High Precision (Instead of Temperature Gradient)
18-Month Warranty

Download Brochure

Download User Manual

Technical Specification

Model	DeNA Cycler 32	DeNA Cycler 64
Sample Capacity (ML)	32*0.2	64*0.2
Temperature Range ( °C)	4-100	4-100
Temperature Control Accuracy ( °C)	0.1	0.1
Average Temperature Rise Rate ( °C)	3	3
Average Rate Of Temperature Decrease ( °C)	2.5	2.5
Maximum Rate Of Temperature Change ( °C)	4	4
Temperature Uniformity ( °C)	±0.4 at 50	±0.4 at 50
Maximum gradient regions ( °C	2 zones	4 zones
Gradient Range ( °C)	8	8
Lid Temperature	Default on 105, but can be variable	Default on 105, but can be variable
Thermal Blocks Mode	yes	yes
Maximum Number Of Steps	100	100
Maximum Number Of Cycles	100	100
Maximum Number Of Programs	Unlimited	Unlimited
LCD Dispaly	7" HDMI Display	7" HDMI Display
USB Port	yes	yes
Dimensions (heightwidthlength CM)	172640	172640
Weight (KG)	8	9
Operating Temperature ( °C)	10 - 30	10 - 30
Power (W )	400 W	600 W
