Denagene Tajhiz

Thermal Cycler

DeNA Cycler 32
Product Code: DNT-ETC32
Thermal cyclers (PCR machines) are commonly used for performing Polymerase Chain Reaction (PCR) reactions. This method was invented by Kary Mullis in 1984, providing researchers, scientists, and physicians with the ability to rapidly and easily amplify billions of copies of a nucleic acid sequence with much greater speed and convenience than traditional manual methods. Thermal cycles come in simple and gradient types. In the simple mode, the machine can simultaneously set a specific temperature for the samples, while in the gradient mode, multiple temperatures can be applied simultaneously. Denagene Tajhiz designs and manufactures both the standard PCR model and the gradient PCR model.
مدل‌های محصول:
Products Price

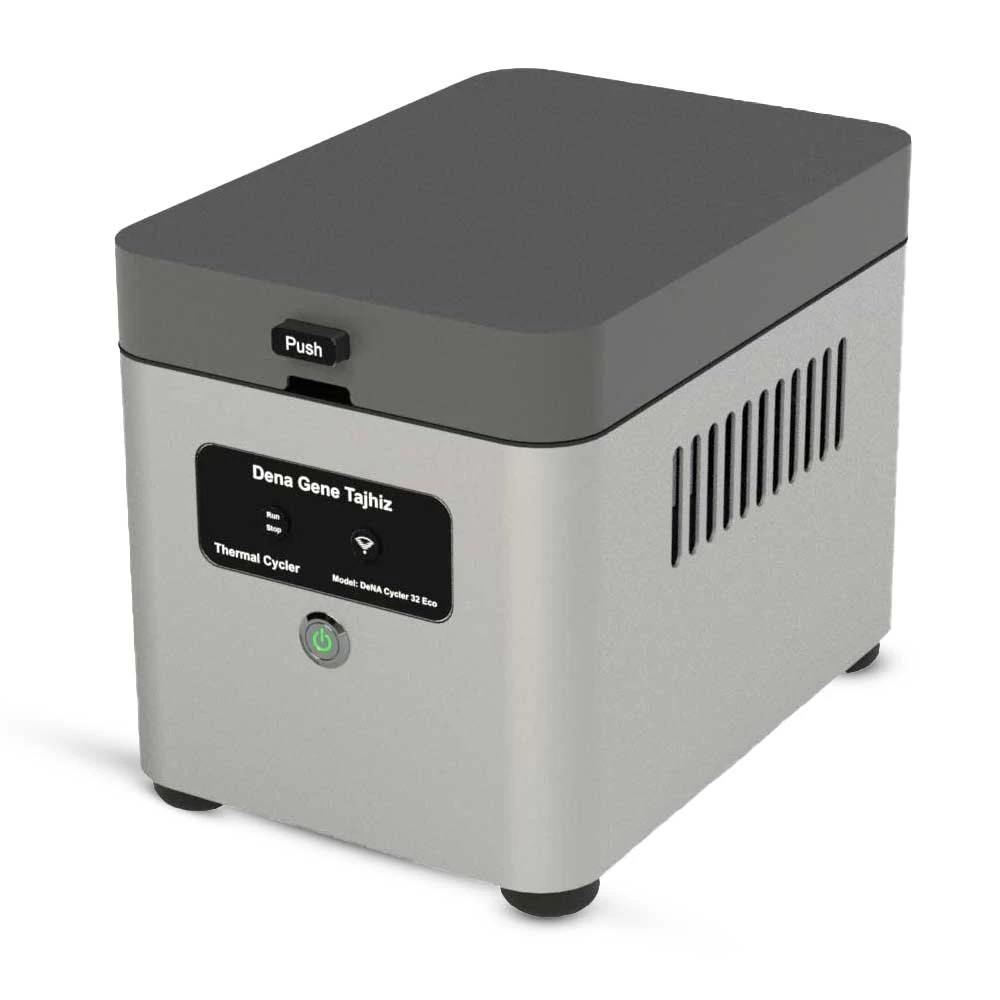

The DeNA Cycler 32 Eco is an economical thermal cycler machine. Using polymerase chain reaction (PCR) technology, the thermal cycler facilitates the amplification of nucleic acids. DNA amplification enables various downstream processes such as diagnostics, cloning, genotyping, and sequence determination. Denagene Tajhiz Company offers both non-gradient PCR and gradient PCR. The device's ramping speed is optimized, allowing a typical PCR reaction to be completed within 60 to 70 minutes. Denagene Tajhiz PCR machines feature a professional body, suitable ramp rates, and exceptionally user-friendly software, enhancing the molecular work experience for users.

Applications

  • Immunology
  • Forensic Science
  • Cancer Diagnosis
  • Population Biology
  • Paleontology
  • Zoology
  • Plant Science Research
  • Clinical Diagnostics of Viruses, Tumors, and Genetic Diseases

Features

  • Uniform Temperature Throughout the Block
  • Various Programmable Settings and Infinite Mode
  • Dynamic Programming System
  • Excellent Temperature Control System
  • Suitable Ramping Rate
  • Eco Mode Capability
  • Ability to Define Temperature Zones with High Precision (Instead of Temperature Gradient)
  • 18-Month Warranty



Download Brochure
Download User Manual
Technical Specification
Model DeNA Cycler 32 DeNA Cycler 64
Sample Capacity (ML) 32*0.2 64*0.2
Temperature Range ( °C) 4-100  4-100
Temperature Control Accuracy ( °C) 0.1   0.1
Average Temperature Rise Rate ( °C)
Average Rate Of Temperature Decrease ( °C) 2.5    2.5
Maximum Rate Of Temperature Change ( °C) 4   4
Temperature Uniformity ( °C) ±0.4 at 50   ±0.4 at 50
Maximum gradient regions ( °C 2 zones 4 zones
Gradient Range ( °C) 8 8
Lid Temperature Default on 105, but can be variable Default on 105, but can be variable
Thermal Blocks Mode yes yes
Maximum Number Of Steps 100 100
Maximum Number Of Cycles 100 100
Maximum Number Of Programs Unlimited  Unlimited
LCD Dispaly 7" HDMI Display 7" HDMI Display
USB Port yes yes
Dimensions (height*width*length CM) 17*26*40 17*26*40
Weight (KG) 8 9
Operating Temperature ( °C) 10 - 30 10 - 30
Power (W ) 400 W 600 W
